Friday, August 27, 2010

A Woven and Half-hitched Paracord Pouch...

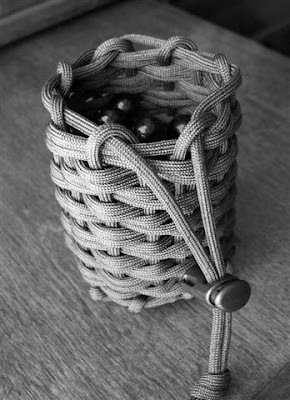

A woven and half hitched paracord pouch, that I made to hold the 1/2 inch marbles I use for small monkey's fists and turks head knots. It also serves as a slingshot ammo pouch. About 30 feet of paracord was used, including the cinch cord/drawstring with cord lock.










*Photo collage instruction sheet added. A Perma-Lok Lacing Needle and hemostats/forceps(or thin needle nosed pliers) can come in handy with making this project.

*Added a video slide show for this project on YouTube.

66 comments:

Don In Alabama said...

You have probably posted this before but I can't find it...where do you get the press slide gizmo? The thingy that holds it closed...whatever it's called.

Stormdrane said...

You can find 'cord locks' on ebay and some other online retailers, like County Comm, Lighthound, TAD Gear, REI, etc...

Nicky said...

can you create a video on youtube or even just a bunch of still pictures on how to make this

Anonymous said...

Hey I am a fan of your work... I was wondering if you can make a gear loft out of paracord cause recently my gear loft in my tent broke and instead of buying a new one I was wondering if there was a way to make one.

Il Simon said...

i qoute Nicky... a video or the name of the knot... thanks

Weas said...

Just wanted to let you know that you got at least one reader from Sweden :) Love your blog, keep up the good work!

Stormdrane said...

Photo collage instruction sheet added to blog post. ;)

Elliot said...

Hi, I am also a big fan of your knot work. I like the look of this pouch. How does it compare to the complete half-hitched pouches you have previously tied? Specifically which uses more cord, and which is more durable?
Thanks again for all your work, and I will keep logging back in to see your newest knots.

Stormdrane said...

The woven and the half hitched pouches of the similar/same size, use about the same amount of paracord. The cow hitched version uses a little more cord with the extra hitches.

Durability should also be similar since they're made of the same material. The half hitched and cow hitched pouches have more 'stretch' in them when fitting around their contents, where the woven pouch doesn't.

Anonymous said...

WalMart has cord locks in the camping section now.

Patrick Haggerty said...

I made the pouch! Well....mostly. I did finish it and it looks alright but not as clean as yours, especially the bottom half-hitching. How tight does the wrap around the can have to be? I found that mine became really tight on the last few stitches and nearly broke my plastic needle.

Stormdrane said...

I use a pen, pencil, or marker with the can when making the initial coils, to add a little more diameter to the pouch, and making enough extra slack in the cord around the can after removing it.

It can get very tight finishing up the vertical weaves without doing that. For the pouch, it's okay if it's tight, but for can koozie use, you need it to be loose enough to get a can in and out.

JohnB said...

Love your work.. been a fan for a couple of years.. Thanks for posting the pics on how to do this.. will be finished by end of today!! You ROCK!!

Stormdrane said...

Anonymous that asked about a 'gear loft' done with paracord, here's an example link of a paracord net, that someone recently posted on flickr, that would do well for a tent loft...

Mikeith said...

Hey, i've only been keeping up with your blog for a short time but it has be a huge inspiration for my own knot/braid work with paracord! what color is this gray you used and where did you get it? it looks GREAT!

Stormdrane said...

The photos are black and white, so the paracord color I used is actually a dark olive drab, that I was given for Christmas last year, so I don't know where it was purchased.

Some vendors have two colors of olive listed, like the Supply Captain, OD Green and Dark OD. They also carry a standard gray color too.

yessuf1 said...

Love the work, http://bushcraftsman.weebly.com

Patrick Haggerty said...

how did you thread the needle with the paracord? I've been having a tough time melting the end to a fine enough point to get into the back.

Stormdrane said...

I cut the paracord end to an angle/point, melt it a bit, then screw it right into the lacing needles threads.

Here's an example link of how to do it, shown on YouTube.

Ohno Ohno Ohno said...

Have tried this twice and failed. It looks great until I remove the can then everything get's really really "loose". The bottom is great but the "wrapping" cords move around a lot and separate making it UGLY. Any advice?

Stormdrane said...

Sounds like there is too much slack in the weave when you take it off the can. Before starting on the bottom hitching, go back and work as much slack out of the weave, starting at the wraps and working all the way through the vertical weaving, until everything it really tight, but not bunched up, overlapping, or twisted.

Then continue with the bottom hitching before removing the work from the can. That should help it keep it's structure. ;)

icerisics said...

hi, i got this link from a fellow yoyoer and love it,
didnt have any forceps but managed to get awat with a really thin screwdriver to wedge the cord thru,
not saying it was easy and i DID have an accident piercing the can near the end lol. love my new yoyo
pouch tho, thanks a lot.
i had no experience with anything like this before but im really happy with the outcome!
top notch how to, all the best man!

Stormdrane said...

I wasn't really worried that my blunt Perma Lok needle might puncture the can(full/unopened), as the cord got tighter during weaving, and managed without an accident.

But,there were a lot of dents in the can when finished, and I imagine if it had been punctured and burst, I probably would have hollered and jumped around a bit while getting doused, lol. At least diet soda isn't sticky with sugar like regular soda. ;)

iceristics said...

with that in mind trust me to pick lucozade lol.
would this process work with thick wool too by the way?
im hoping to make one with a pocket on the front somehow too, any ideas for that?

Stormdrane said...

I don't know if wool or yarn would work, probably not being as 'stiff' as paracord is for structure, but it might be worth a try. I'd think the weaving would need to be tighter with more density, a lot more wraps, and closer weaving... more crochet like I think.

Not sure on adding a pocket, other than maybe making a flat woven piece, and then somehow stitching it to a finished pouch...

shooter said...

Just made two of the pouches. One with a soda can and another with a water bottle. I found that as I tighten up on the water bottle, it came out better suited for a beer koozie than if I used the beer can. It was only about 1/8" wider than a 12oz. can. In order to have more room to work with, I used a sharpie marker to keep enough slack for weaving. I'm always inspired to try new knots after perusing your blog, SD. Keep it up.

RChambers84 said...

Ive just tried to make one of these pouches twice and failed. Everything goes well until I hit the half hitches at the bottom. For every loop up and down a loop is made at the bottom, do you only put 1 half hitch on each and then 1 hitch on each previous hitch until you reach the middle?

Stormdrane said...

@RChambers84, When you reach the bottom, hitch around each of the loops and the last horizontal wrap between them. This makes sure the transition from sides to bottom of the pouch is well connected without gaps.

As you hitch round towards the center of the bottom, you can begin to skip every other hitch as you run out of room.

You can vary the pattern on the bottom with double hitching, doing two consecutive hitches on the loops, etc...

Cameron said...

Definitely some good stuff you've got posted here. I've got lots of odd lenghts of 550 cord, so i took this design and made it around a small Tylenol bottle to make a small pouch. Some minor design changes, but it brings me back to my boyhood re learning all these knots. I forgot how useful they could be.

Ly said...

I've just discovered your site. Wonderful knotwork info. Thanks for the instructions on this one. I've seen a strikingly similar-looking thing (though probably not the same) in a Chinese art objects book. It was a ship's ballast woven of young rattan.

Have you tried working with natural fibers (like rattan rope)? I think your stuff would look very good (and rustic) with it.

Stormdrane said...

@Ly, I haven't tried rattan rope. Besides leather, I've done some projects with hemp, cotton, and manila cordage, but it's sometimes harder to work with twisted cord instead of braided, since you have to make sure it doesn't unravel as you work with it.

Ly said...

LOl@ ballast. I meant fender. I'm planning on trying this finer abaca (hemp) rope - I think it's the same as Manila cordage - and the ocean plait mat using thicker rope. Thanks again for providing tutorials!

Grayson Kelly said...

Hi Stormdrane! I made the woven pouch for a water bottle and the weaved portion turned out great. The half hitches at the bottom seem to be a problem for me, however. It seems that I'm making the pouch even longer because i'm forming this huge cone of half hitches...how do I get the bottom to flatten out? Do I need to tighten my hitches or pull them a certain way? I mean, by the time I finished the half hitches my half hitched portion was almost as tall as the weaved portion. Any advice?
Thanks, Grayson.

Stormdrane said...

@Grayson, You need to reduce the number of hitches as you spiral towards the center of the bottom of the pouch. You do that by skipping every other hitch as you run out of room towards the center.

Grayson Kelly said...

thank you! It's not all that pretty on the bottom but it worked! With some practice it will be better. thank you so much for the advice.
Grayson

Kaden said...

Hey i love the pouch! Wondering where you get your ball bearings? what size you normally use for monkeyfists!! Thanks!

Stormdrane said...

@Kaden, I've bought ball bearings from ebay seller ToolSupply, usually using 1/2" or 3/4" sizes. But, I prefer using marbles or wooden balls for monkey's fist cores, since they're lighter weight. YMMV ;)

Anonymous said...

One question i have is, how rigid is this pouch supposed to be? I have made several per the slide show and my most recent one came out great, however, despite removing as much slack as possible the coils still shift and overlap.

Stormdrane said...

@Anonymous, You can vary how rigid the pouch is by how loose/tight the weaving is done. I have made can koozies with the same pattern that stand up and keep their shape when empty, and pouches that are soft enough to flatten and fold up when empty, but keep their shape.

Sometimes the paracord itself can make a difference. Some cord is softer and flattens out, where some is firmer with a more round shape. I've had paracord with a loose fitting outer sheath over the inner strands, and prefer cord with a firmer, solid feel to it.

450 type paracord has loose fibrous inner strands compared to 550 paracord with twisted inner strands, and I prefer the 550 type for knot work.

You can also vary the weaving, going over/under single strands, or two or three at a time, to get a a different look and feel as well.

The Mad Plumbarian said...

How would you do something similar but for a bear bell, about the same size of a golf ball, little smaller, and also put a magnet at the bottom? http://www.backcountrygear.com/catalog/accessdetail.cfm/CO1020

Stormdrane said...

@The Mad Plumbarian, Find a cylinder shaped object, something like a section of PVC pipe or tubing, that is slightly larger than the bell, and tie the pouch in the same process as in the instructions.

It will of course be smaller, using less cord, but the same tying method will apply. The pouch should be tall enough to close over the bell when finished.

The magnet, depending on size/shape, may be glued in place at the bottom of the pouch, or possibly using excess cord after hitching the bottom, you might try to wrap the cord over/around the magnet(if disc shaped) a few times, securing it to the inside bottom of the pouch.

You'd have to experiment with methods of securing the magnet. I haven't tried it but I'm sure something would work.

The Mad Plumbarian said...

Thanks, i will putts around with it and see what comes of it, ill let you know, and post a pic, if not here then on edc, thanks again, JR

Anonymous said...

Do you sell these pouches. I would by one from you. They are really cool.

Stormdrane said...

@Anonymous, I don't make the pouches to sell, since the time and effort involved in making them is more suited as a do-it-yourself project.

You might find someone on ebay, etsy, or in the buy/sell/trade sections of certain forums, that do custom paracord work by requests, to make one for you...

BluePenny said...

In response to Don in Alabama:

Cord locks are available at most sewing/fabric stores, like JoAnn or New York Fabrics. They are on the notions wall, where the various helpful sewing gadgets are, like needles, bobbins, marking pencils, etc.

They are more expensive than buying in bulk, but if you only want one or two it works.

michael said...

how much would you sell a pouch for

Stormdrane said...

@Michael, I don't offer them for sale, but there are others(example from YouTube) that have followed the directions to make their own, even figuring ways to make improvements, and you might ask them if they'd be willing to sell what they've made.

Check around ebay, etsy, artfire for things made with paracord and inquire with those knot tyers, and some of the online forums have buy/sell/trade sections where you can look or put in a request.

Unknown said...

I did a video tutorial at YouTube on how to make this project. You can check it out here...

www.youtube.com/watch?v=ZyxRhfbZYdk

Art Jenkins said...

yes i was wondering if you left the core in the paracord or did you gut it out?

Stormdrane said...

@Art, I left the inner strands of the paracord intact for this project, so it's not gutted.

For some projects I have gutted the paracord for weaving, and it comes down to sometimes working better one way than the other.

It may not matter in a functional sense, but the finished project may look better with or without gutting the cord, so sometimes trying it both ways is done to see what you end up with... ;)

Chapman said...

I love your site. I've made 5 pouches like these, and I am thinking of selling them in my etsy shop. How do you feel about people selling products made from your designs? Thanks.

Stormdrane said...

@Chapman, I don't mind if folks sell things they make from any designs I've shared, made using using long existing knot/braid/weaving techniques.

When I've learned to make something from someone else or a book/online reference, I usually mention the source and/or link to it in a blog post. ;)

Jacob prentner said...

Awesome job SD,every time i look for something knotty, youre there to supply!
it took me one try to get everything down because of your video and website.
Only things i had to do different are i used two shims(large paint markers) around the can, just to get enough room to move the needle around.
Then, after, if its not being used for a koozie, shrink the paracord in boiling water for 20 seconds after its all completed, it made mine tighten up, form better, the whole works, and it takes out some of your mistakes ;)

chapman said...

Thanks for the go-ahead. I modified this pattern slightly, using paracord in two colors and using a mast heat knot mat for the base. You can see some pics here:

https://www.etsy.com/listing/120804787/paracord-pouch-olive-and-bronze-with

Keep up the great work, I get a lot of inspiration from your site!

Makethings said...

How much paracord would you need to use if u wanted to use it to hold shoes or something?

Stormdrane said...

@Makethings, The possible variables on a larger project like that would suggest using enough to probably tie the pouch around a shoebox. So if 30 to 40 feet of paracord makes a small pouch or can koozie, you'd most likely need a several times that amount to cover a larger item.

I can't give an exact number to an unknown set of variables for what would be a mathematical equation in figuring out a formula and answer.

So, I'd be guessing with using a 200 or 300 foot or more length of paracord. I wear size 13 extra wide(4E), and that would use a lot more for a pouch than someone with a smaller shoe size, lol...

Jacob prentner said...

@Makethings
like 500, seriously, lol.
Ive always wanted to make a back pack,
45 feet makes a pouch the same diameter and about half as long (5.5 inches" as a can of Lysol for me.

Makethings said...

How would i make it so i could attach the pouch to a belt?

Stormdrane said...

@Makethings, There are various different ways you could make the pouch wearable on a belt.

A couple of quick solutions would be adding zipties for belt loops, or add in another strand of paracord for a knotted belt loop, as done like this previous example, showing one added to a paracord sheath..

Anonymous said...

Hey Stormdrane! Cool site, cool stuff. I made this one, but used three passes for each weave insteadd of two like yours. No reason, just did. Found it to be very unstable once I took the can out. Did you find that to be the case too? So I put the can back in and soaked it in water. Word of warning, the cord shrank! It's definitely firmer, but now the can won't fit. Back to the tying board...
Also, I used the vertical hitch for the bottom. I like the way it turns out.

Stormdrane said...

@Anonymous, The finished pouch was stable enough with the cord I used and weaving over a couple of cords at a time.

Some paracord is 'softer' than others and that may affect the finished pouch.

I use regular 550 paracord that doesn't shrink up noticeably on me. If I wash it, I use cold tap water, liquid soap, and a soft bristle toothbrush to clean and rinse, so no shrinkage.

Some types of paracord, like 450, have polyester content that may shrink, and boiling and drying with high heat may also affect the cord adversely, so I don't use those methods and have no problems.

Billy said...

Hey there,
Faboulous work, thanks for sharing all of these ...
One question if you don't mind, I wonder if this design can be adapted to a smaller size, or maybe there's a different one that might fit better my need: I'm thinking of making a small keys pouch from paracord, on the general shape of this:
http://www.hangar111.com/keychoob/keychoobmain.htm
or this
http://www.huntleather.com.au/antonini-key-ring-pouch.html
With this kind of pouch one end could be secured to a fixed part of my jeans (belt, loop, etc.) and the pouch would stay in the front pocket hiding the keys and especially without having the keys damaging the pocket.
In your vast experience, have you seen somthing that can easily be adapted to what I have in mind ? Thanks a lot for any help ...

Stormdrane said...

@Billy, For a smaller sized pouch, whether woven or hitched, you can use paracord or smaller diameter cord, and tie it around an object that is slightly larger than your keys will be when tucked inside.

Here's an example of a half hitched/needle hitched pouch for a small flashlight.

You'd just need to keep the pattern tight, so that your keys wouldn't be constantly poking through the pouch, or possibly line the inside of the pouch with something like leather or a plastic sleeve...

Talisien said...

Great Blog. Thank you for sharing an such great inspiration. Love your work.

joestack949 said...

You probably already answered this but as i read through some the previous comments i di dnot see this question. Did you pull the seven strands out of the paracord prior to making the pouch?

Stormdrane said...

@joestack949, The paracord is not gutted, the inner strands remain intact.
